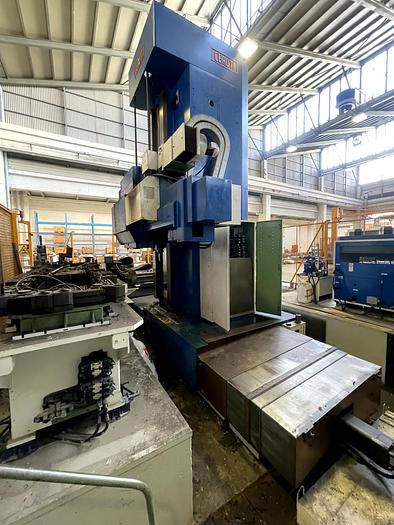

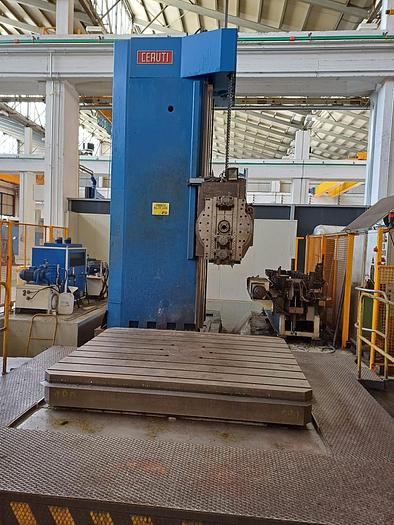

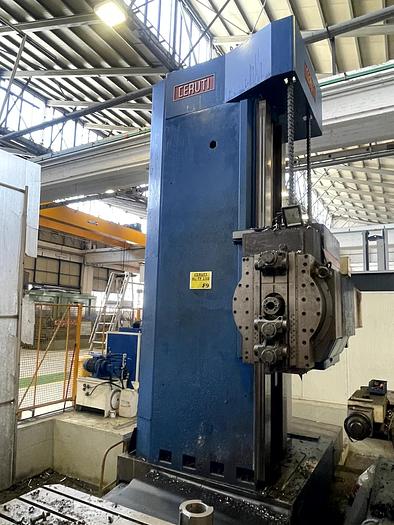

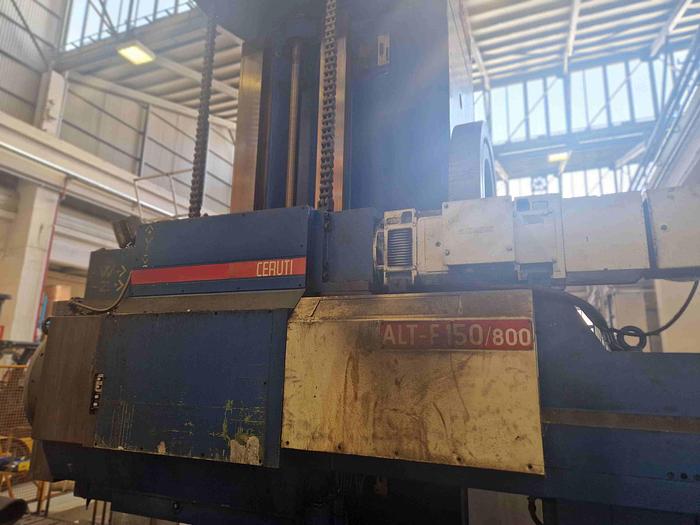

CERUTI ALT-F CNC "T" TYPE BORER
Technical specifications
| Manufacturer | CERUTI |
| Model | ALT-F CNC |
| Year | 1983 |
| Spindle | 150 mm. |
| Tranversal travel | 3.600 mm. |
| Vertical travel | 2.700 mm. |
| Longitudianl travel | 2.000 mm. |
| Spindle travel | 1.000 mm. |
| Spindle taper | ISO 50 |
| Table | 2.200 X 1.800 mm. |
| Max. weight on table | 20 Tons. |
| Spindle motor power | 37,8 Kw. |
| Spindle speeds | 5 ÷ 1.210 Rpm. |

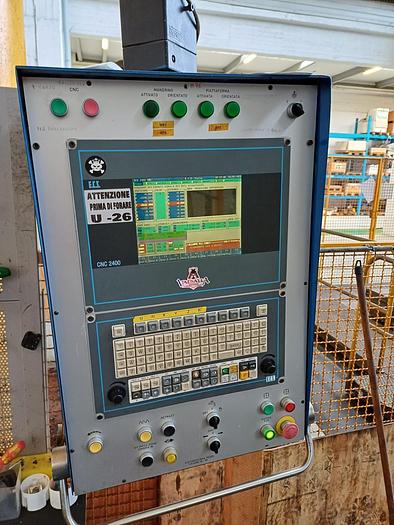

| Cnc | CNC ECS 2400 |
| Total weight | 75 Tons. |
Features and Accessories
Retrofitted in 1997.
Complete with:
- 56 seats atc
- CNC facing head Ø 800, capacity Ø 200 ÷ 1.600 mm., (U) 300 mm.
- chipconveyor

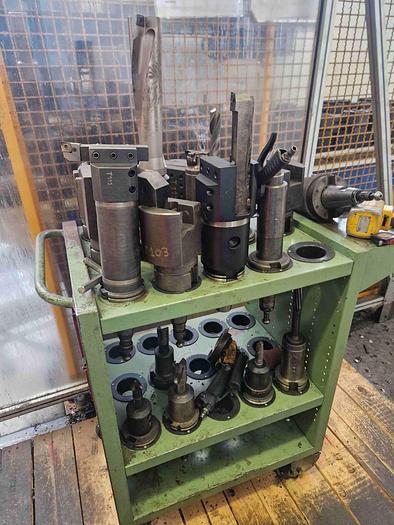

- tool-holders and tooling
