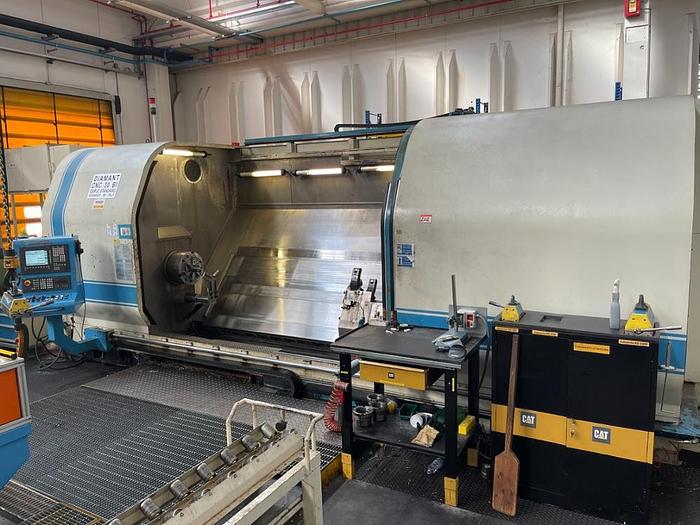

DUPLO STANDARD DIAMANT 30 x 3500 - 2 TC CNC SLANT BED LATHE
Technical specifications
| Manufacturer | DUPLO STANDARD |
| Model | DIAMANT 30 2 TC CNC |
| Year | 2009 |
| Centres height | 450 mm. |
| Centres distance | 3.500 mm. |
| Max. Ø over saddle | 600 mm. |
| Max. Ø over bed | 900 mm. |
| Spindle power | 60 Kw. |
| Spindle speeds | 0 ÷ 1.500 Rpm. |
| Spindle hole | 180 mm. |

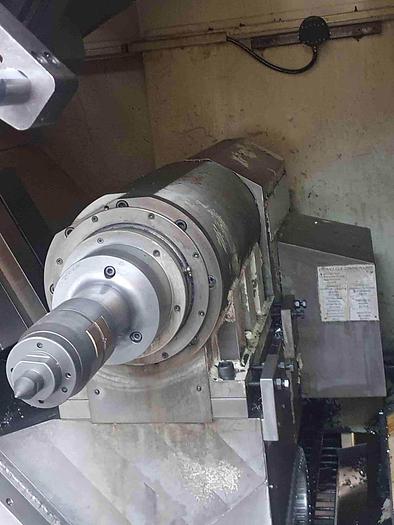

| Tailstock nose travel | 150 mm. |

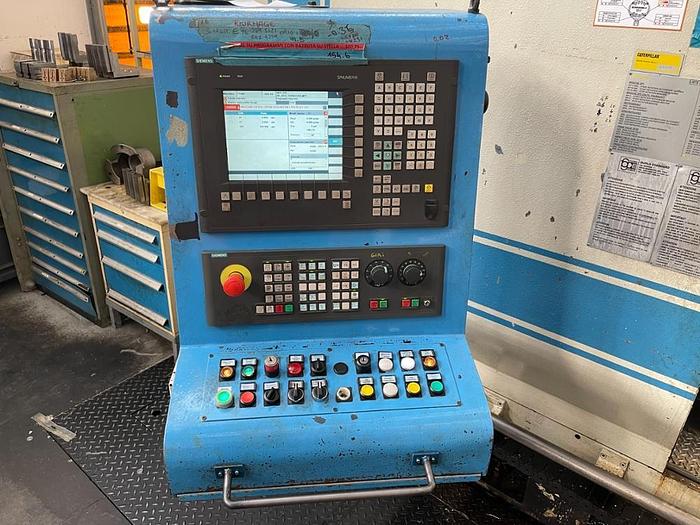

| Cnc | CNC Siemens 840 D |
| Total weight | 36 Tons. |
Features and Accessories
Complete with:
- “c” axis
- motorised tools: 23 kw.; 2.000 rpm.

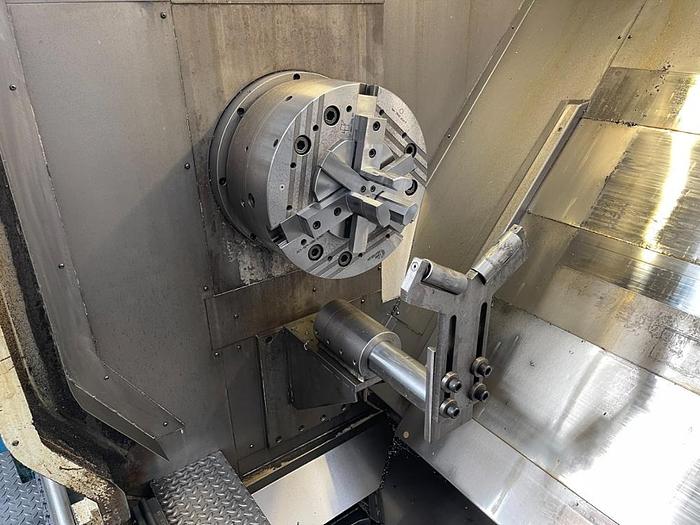

- n. 1 hydraulic self centering chuck Ø 425 mm.
- n. 1 x 16 positions automatic turret
- n. 1 self centering steady Ø 85 ÷ 350 mm.
- renishaw

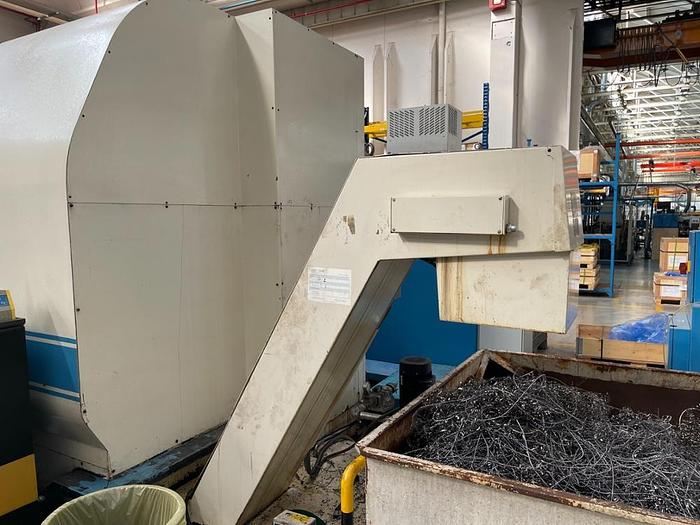

- chipconveyor
- full guards
