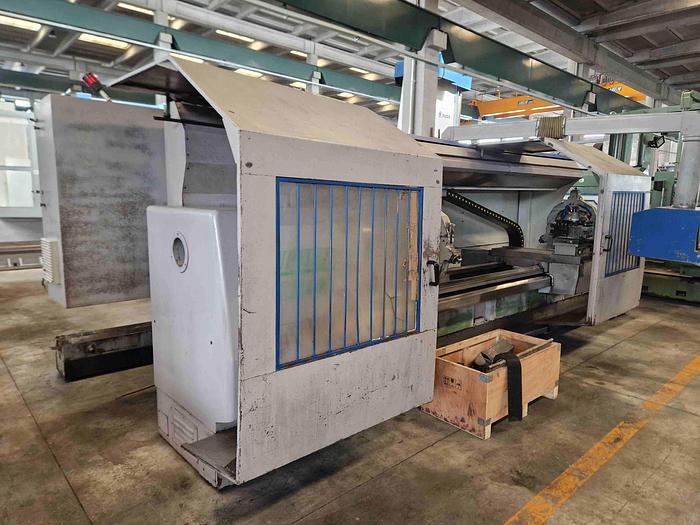

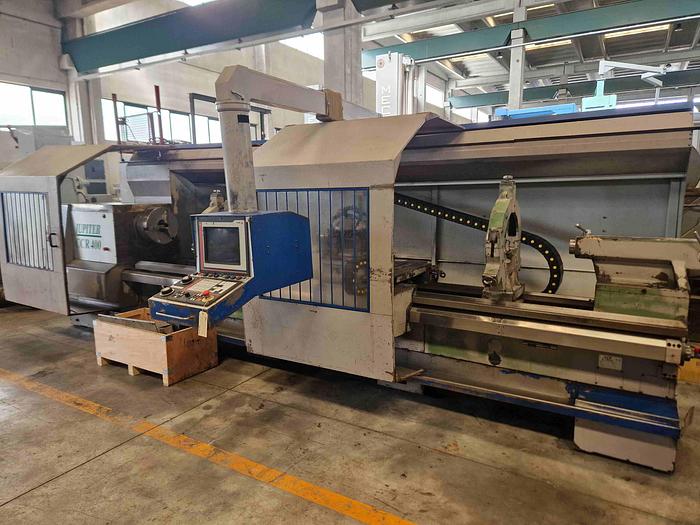

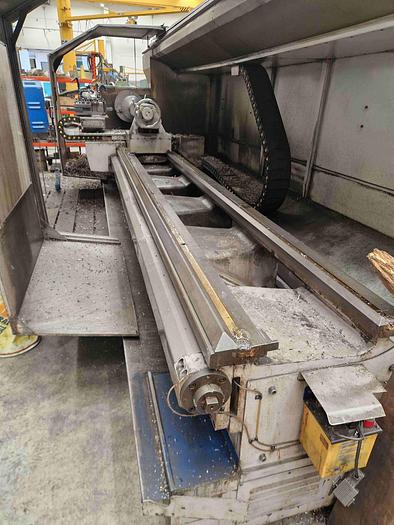

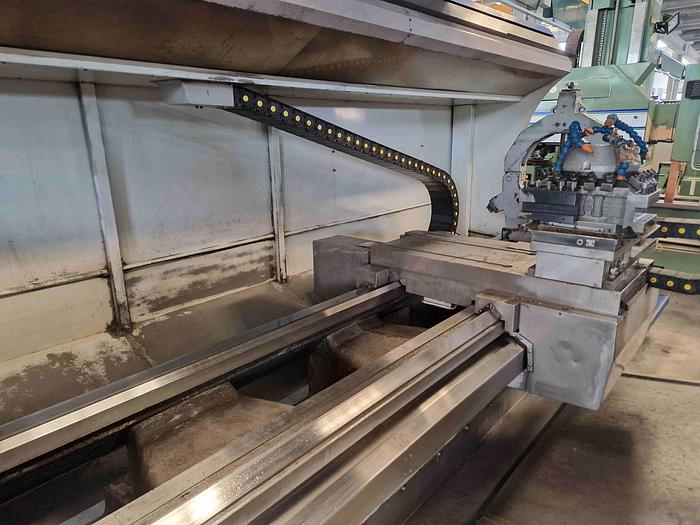

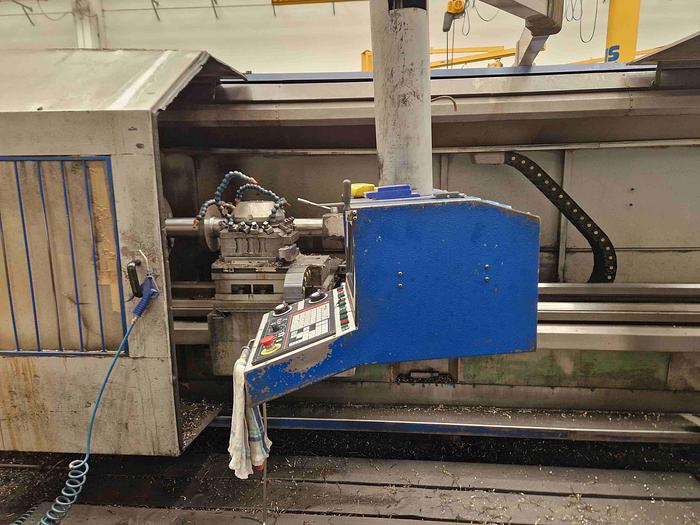

JUPITER CCR 400x4000 CNC LATHE
No longer available
Technical specifications
| Manufacturer | JUPITER |
| Model | CCR 400 x 4.000 CNC |
| Year | 1995 |
| Centres height | 392 mm. |
| Centres distance | 4.000 mm. |
| Max. Ø over saddle | 490 mm. |
| Max. Ø over bed | 800 mm. |
| Max. Ø over the gap | 1.050 mm. |
| Gap lenght | 400 mm. |
| Spindle power | 30 Kw. |
| Spindle speeds | 0 ÷ 1.000 Rpm. |
| Spindle hole | 105 mm. |

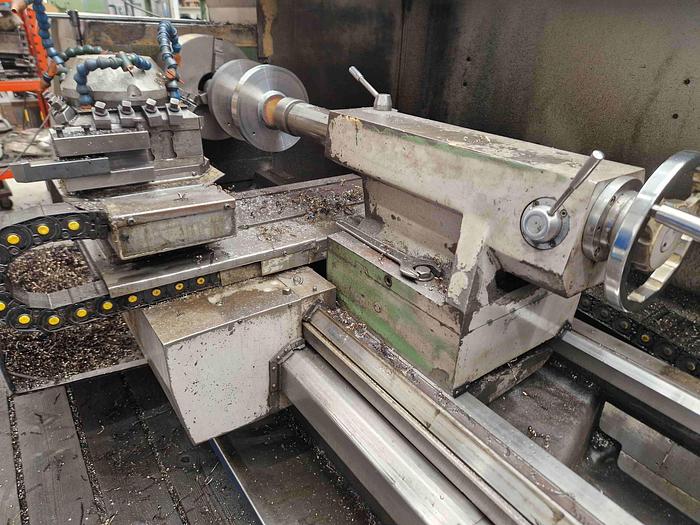

| Tailstock nose | 100 mm. |
| Tailstock nose travel | 300 mm. |

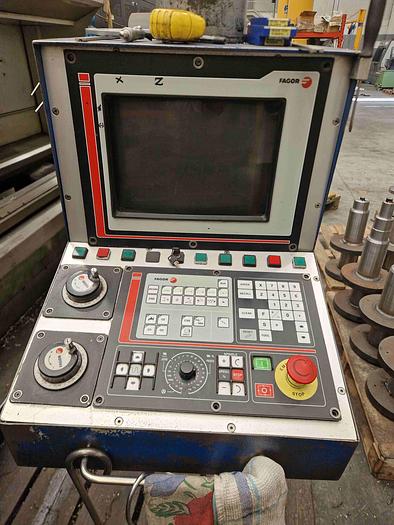

| Cnc | CNC Fagor 800 T |
| Total weight | 8.500 Kg. |
Features and Accessories
Complete with:

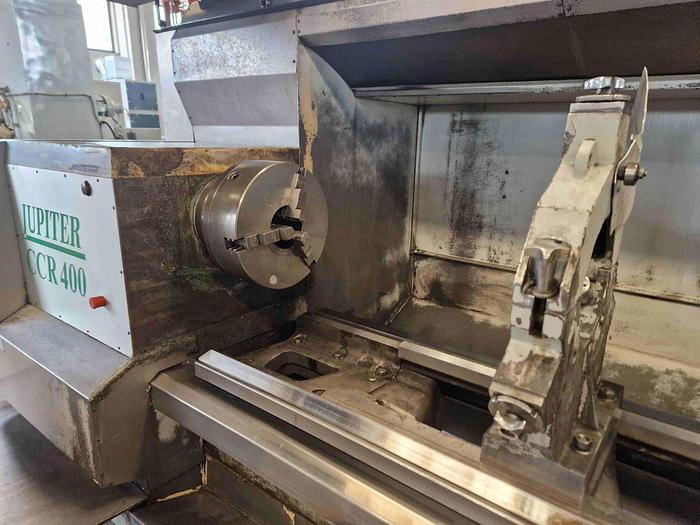

- n. 1 self centering chuck Ø 400 mm.

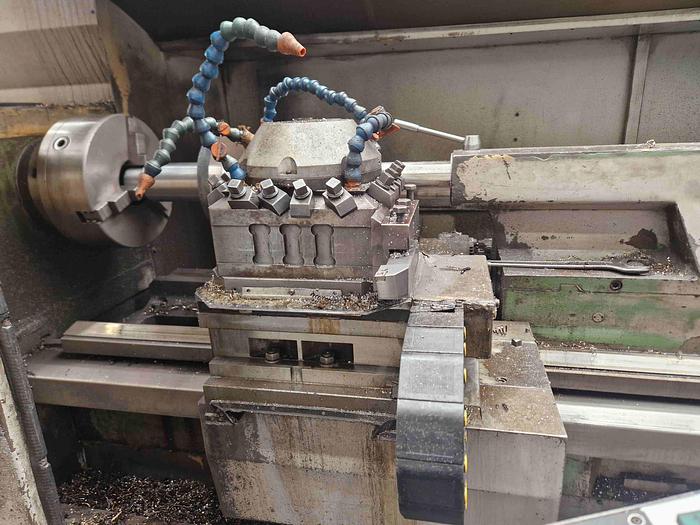

- n. 1 square automatic turret
- n. 2 closed steadies
- chipconveyor
- full-covered
