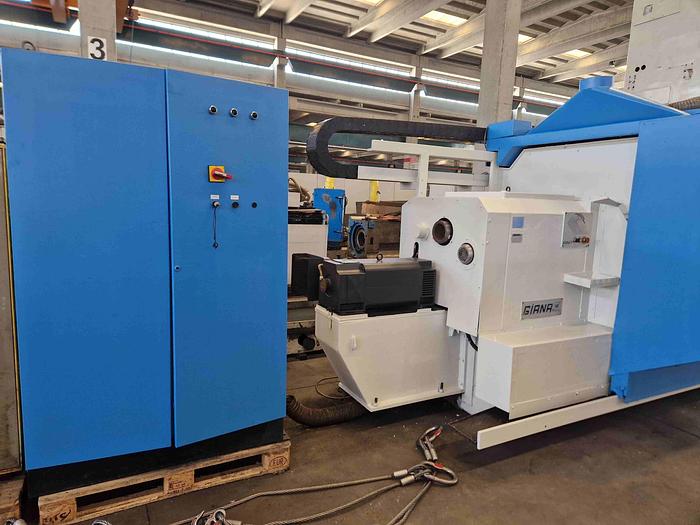

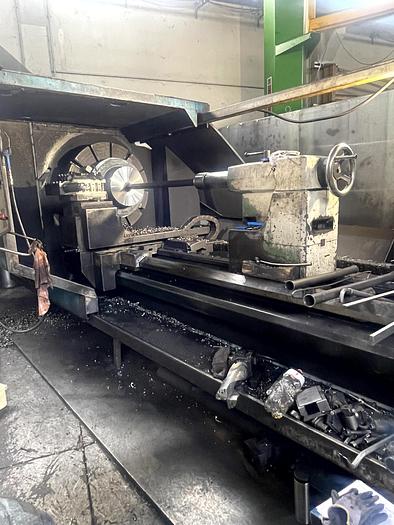

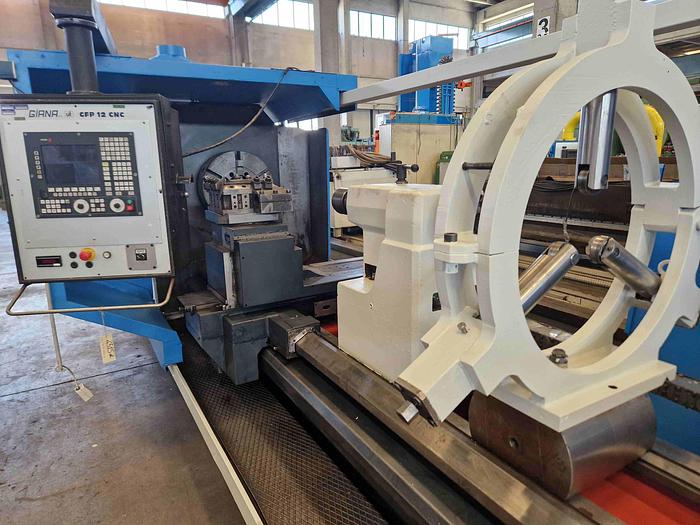

GIANA GFP 12 x 3000 CNC LATHE - 660 x 3000
No longer available
![Usato TORNIO PARALLELO GIANA GFP 12 CNC](https://i.machineryhost.com/8757150decbd89b0f5442ca3db4d0e0e/ae5dcf3be404070c67964f5c54e3f9c3/large-usato-tornio-parallelo-giana-gfp-12-cnc.jpg)
Technical specifications
Manufacturer | GIANA |
Model | GFP 12 CNC - 660x3000 |
Year | 1990 |
Centres height | 660 mm. |
Centres distance | 3.000 mm. |
Max. Ø over saddle | 920 mm. |
Max. Ø over bed | 1.320 mm. |
Bed width | 640 mm. |
Max. weight between centers | 12.000 Kg. |
Spindle power | 37 Kw. |
Spindle speeds | 5 ÷ 1.000 Rpm. |
Spindle hole | 120 mm. |
Tailstock nose | 125 mm. |
Tailstock nose travel | 300 mm. |

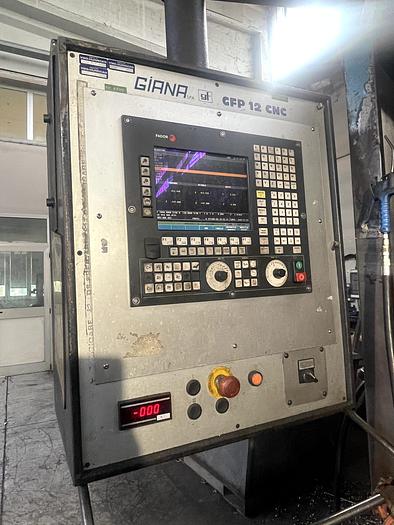

Cnc | CNC Fagor 8055 |
Total weight | 12,5 Tons. |
Features and Accessories
Retrofitted in 2017.
Complete with:
- n. 1 self centering chuck Ø 600 mm.

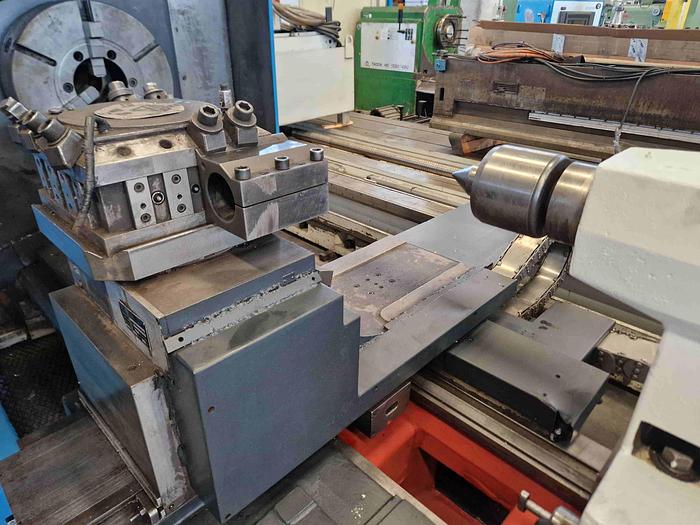

- n. 1 “Baruffaldi BA 300” automatic square turret

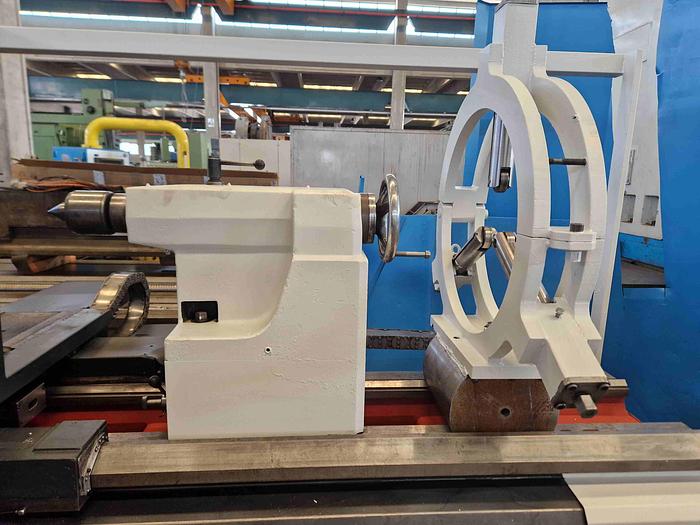

- n. 1 closed steady
- safety protections
