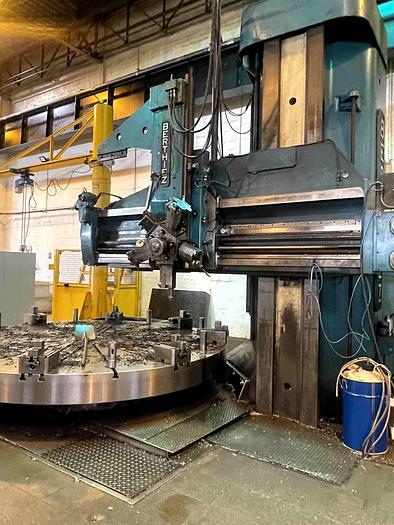

BERTHIEZ BM 225 SINGLE COLUMN VERTICAL BORER
No longer available
![Usato TORNIO VERTICALE AD UN MONTANTE BERTHIEZ BM 225](https://i.machineryhost.com/8757150decbd89b0f5442ca3db4d0e0e/5db4418ab22935ec678e01c91f8a5d03/large-usato-tornio-verticale-ad-un-montante-berthiez-bm-225.jpg)
Technical specifications
Manufacturer | BERTHIEZ |
Model | BM 225 |
Table Ø | 3.500 mm. |
Max. working Ø | 6.300 mm. |
Spindle power | 69 Kw. |
Max. working height | 3.700 mm. |
Max. weight on table | 80 Tonn. |
Table speeds | 0,8 - 125 Rpm. |
Turret type vertical tool travel | 1.050 mm. |
Max. swivelling angle | + 45° / -30° |
Features and Accessories
Complete with:

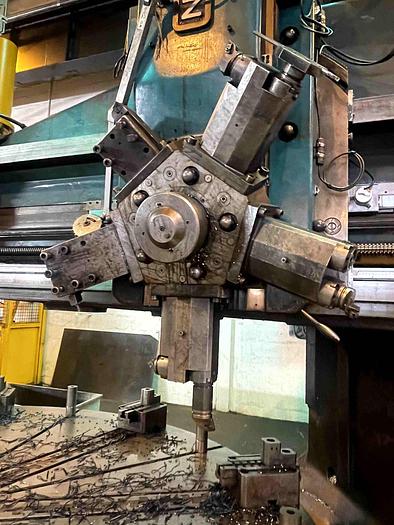

- n. 1 verticale tool with five positions automatic turret

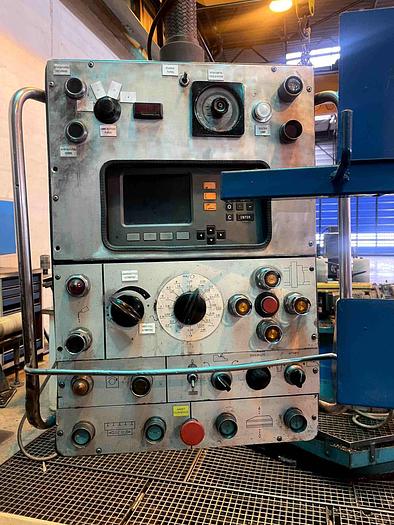

- D.R.O.
- copying attachment
- tool-holders
