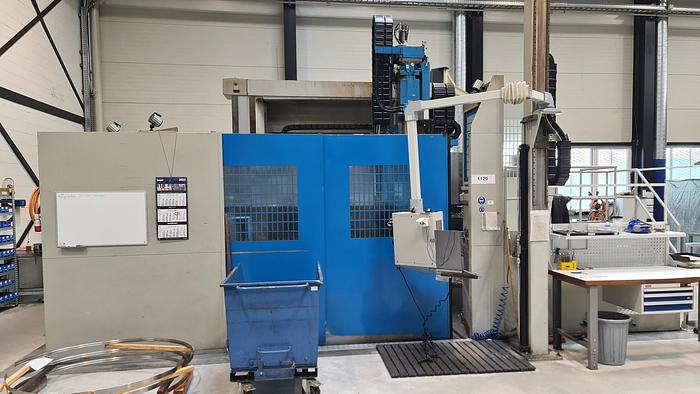

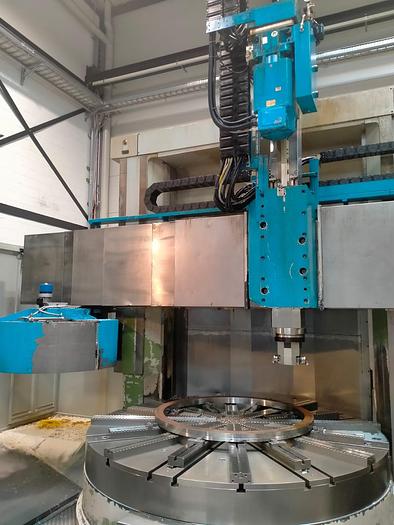

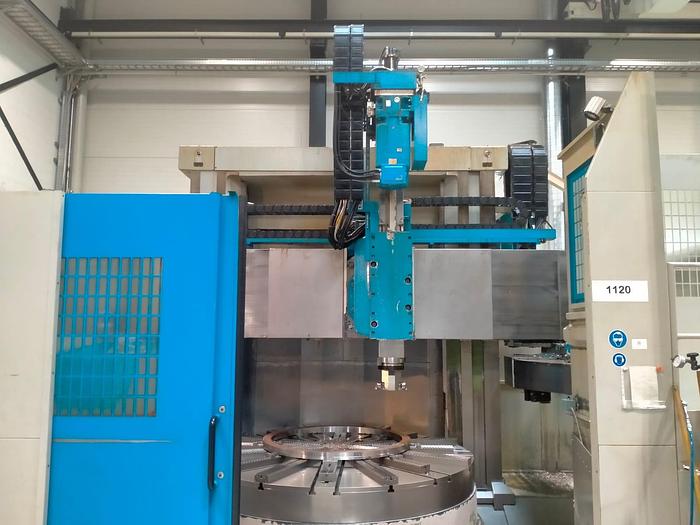

CAMU 2500 TF CNC VERTICAL BORER
No longer available
![Usato TORNIO VERTICALE CAMU 2500 TF CNC](https://i.machineryhost.com/8757150decbd89b0f5442ca3db4d0e0e/2f4cdfd4144a88664d96beca6c3c89c7/large-usato-tornio-verticale-camu-2500-tf-cnc.jpg)
Technical specifications
Manufacturer | CAMU |
Model | 2500 TF CNC |
Year | 2009 |

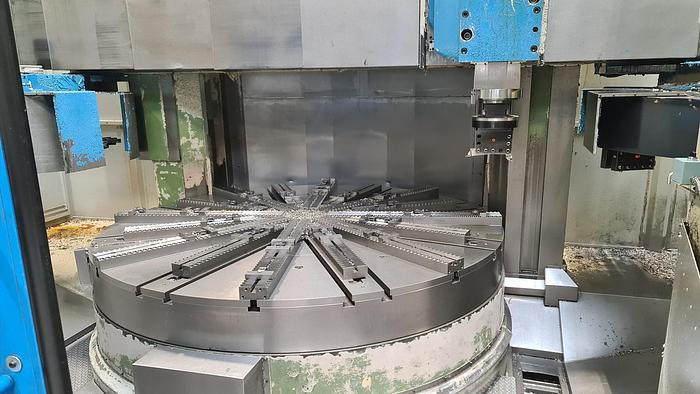

Table Ø | 2.500 mm. |
Max. working Ø | 2.500 mm. |

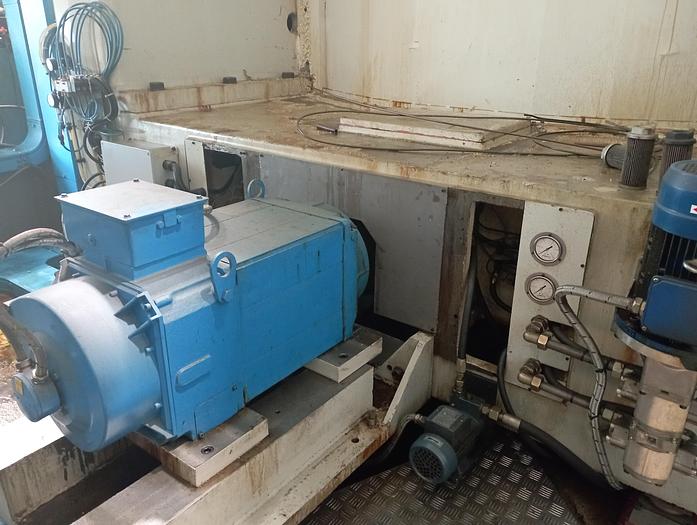

Spindle power | 60 Kw. |
Max. working height | 1.600 mm. |
Max. weight on table | 15 Tons. |
Table speeds | 0 ÷ 135 Rpm. |
RAM type vertical tool travel | 1.000 mm. |
RAM size | 240 x 240 mm. |
Milling motor power | 30 Kw. |
Milling speeds | 1 ÷ 2.000 Rpm. |
Cnc | CNC SIEMENS 840 D |
Total weight | 39 Tons. |
Features and Accessories
Complete with:
- "c" axis and live tooling
- 14 seats atc for turning tools
- 14 seats atc for ISO 50 tool-holders
- chipconveyor
- full covered

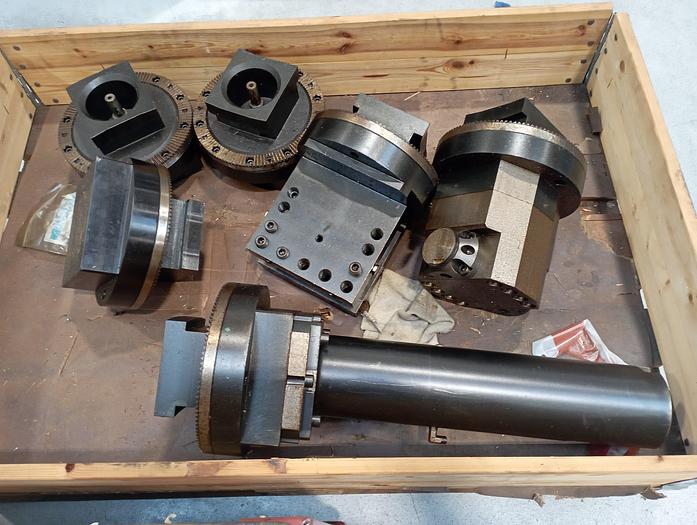

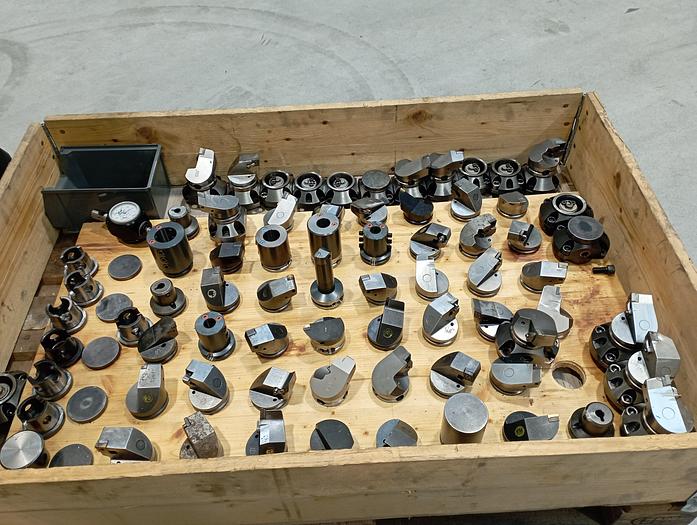

- turning and milling tool holders
