GRAZIANO SAG 24 CNC LATHE - 525x1500
No longer available
![Usato TORNIO PARALLELO GRAZIANO SAG 24 CNC](https://i.machineryhost.com/8757150decbd89b0f5442ca3db4d0e0e/5d929cc717e3505b27a0f234fd1606a9/large-usato-tornio-parallelo-graziano-sag-24-cnc.jpg)
Technical specifications
Manufacturer | GRAZIANO |
Model | SAG 24 CNC |
Centres height | 525 mm. |
Centres distance | 1.500 mm. |
Max. Ø over saddle | 700 mm. |
Max. Ø over bed | 1.050 mm. |
Max. Ø over the gap | 1.250 mm. |
Gap lenght | 550 mm. |
Bed width | 600 mm. |

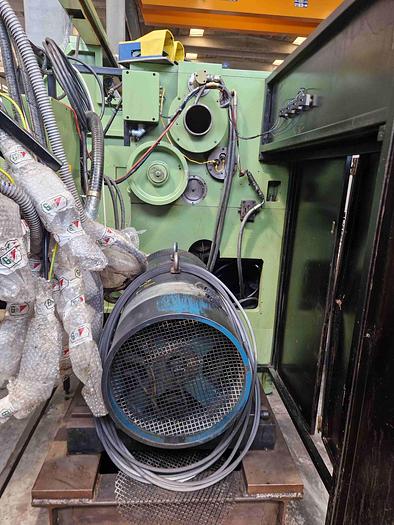

Spindle power | 36 Hp. |
Spindle speeds | 0 ÷ 1.500 Rpm. |
Spindle hole | 114 mm. |

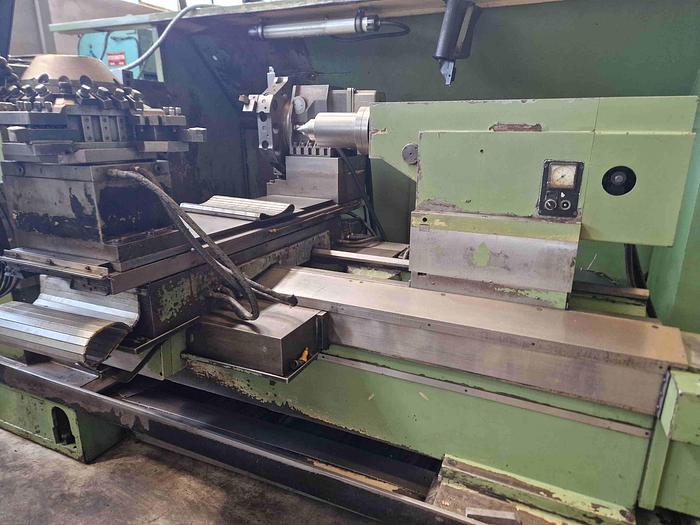

Tailstock nose | 120 mm. |
Tailstock nose travel | 170 mm. |

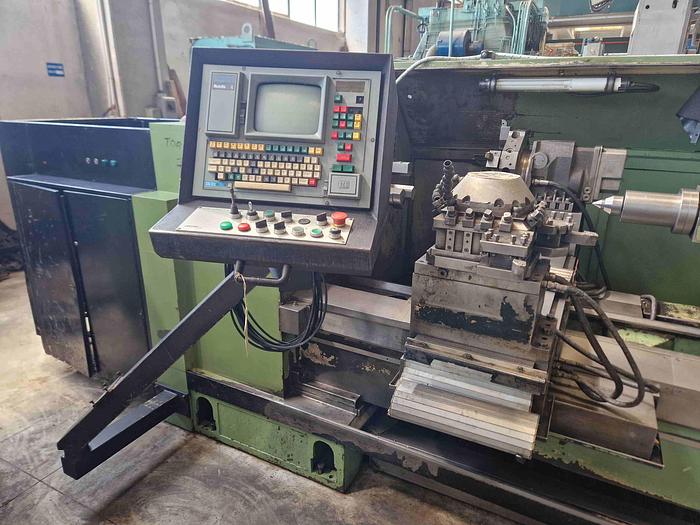

Cnc | CNC ECS 2302 |
Total weight | 11 Tons. |
Features and Accessories
Retrofitted in 1995.
Complete with:

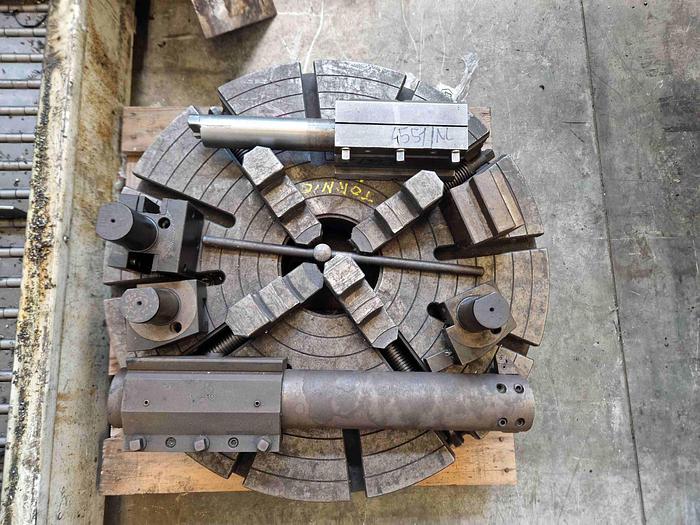

- n. 1 four jaws table Ø 700 mm.
- n. 1 three jaws hydraulic self centering chuck Ø 400 mm.

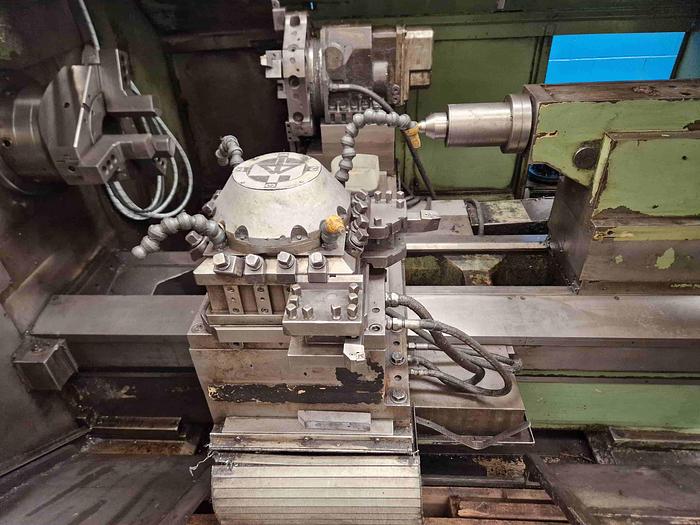

- n. 1 automatic square turret
- n. 1 x 12 positions turret
- tool-holders

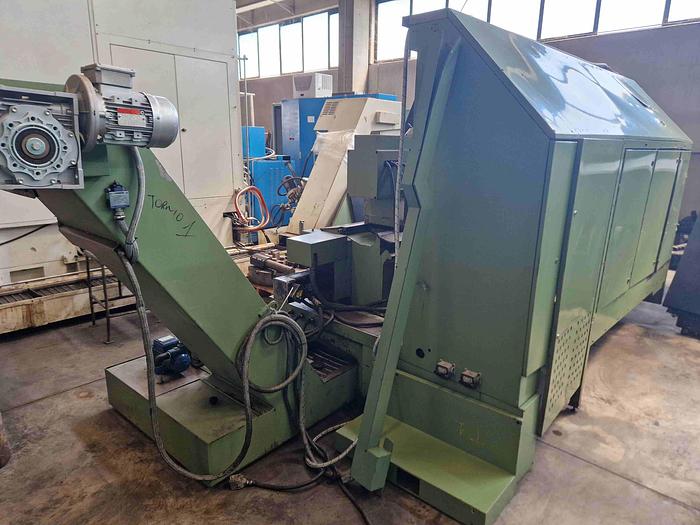

- chipconveyor
- full guard
