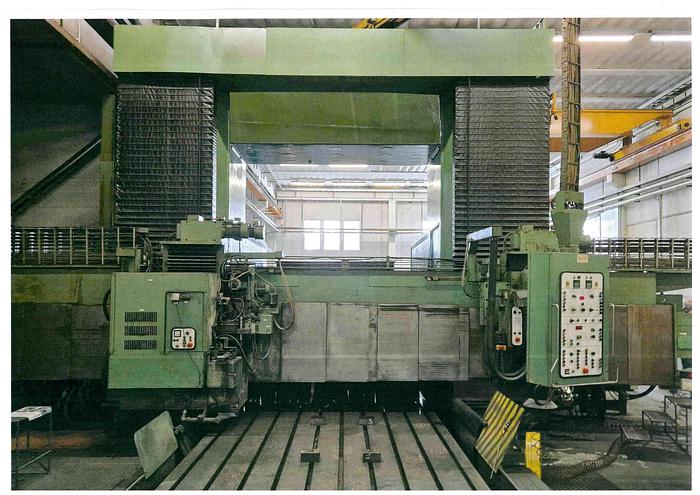

WMW HECKERT SZ 25 - 25 - 12 PORTAL GRINDING MACHINE

Technical specifications

ManufacturerWMW HECKERT
ModelSZ 25-25-12
Year1990
Table12.500 x 2.500 mm.
Max. working height2.500 mm.
Max. grinding capacity12.000 x 2.800 mm.
Passage between columns3.000 mm.
Total Weight200 Tons.

Features and Accessories

Complete with:

N. 1 tangential head mod. USS 22/1:

wheel Ø 630 mm.

wheel width 180 mm.

wheel motor power 22 kw.

wheel vertical travel 250 mm.

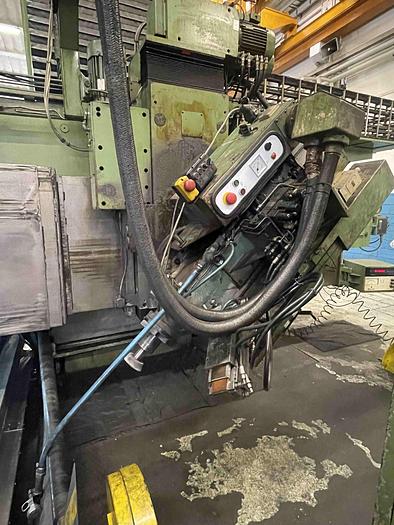

N. 1 universal swivelling head mod. UNI 10/1:

wheel Ø 500 mm.

wheel width 50 mm.

wheel motor power 10 kw.

wheel vertical travel 450 mm.

swivelling +/- 90°

- n. 1 new spare tangential head mod. USS 22/1

- n. 1 new spare universal swivelling head mod. UNI 10/1

- wheels and wheel flanges

- levelling shoes
