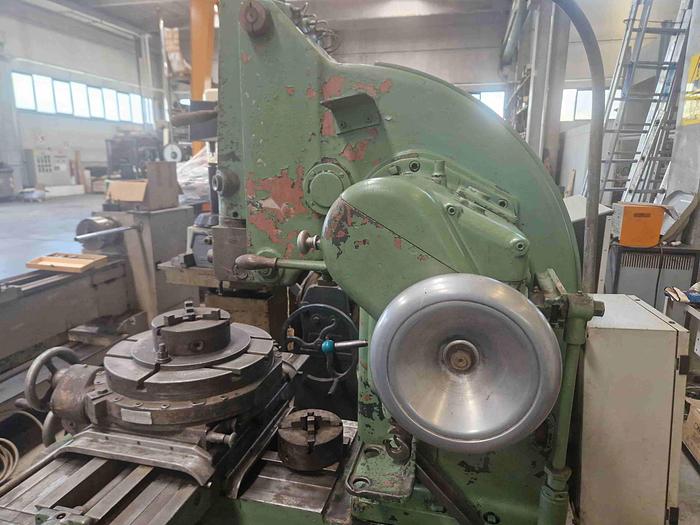

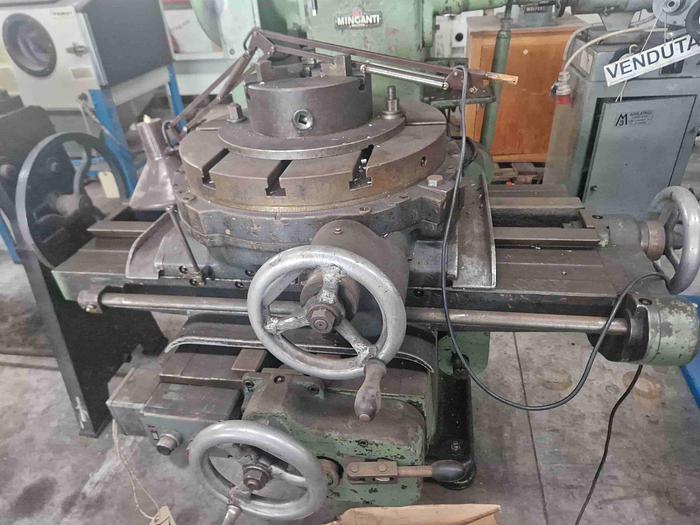

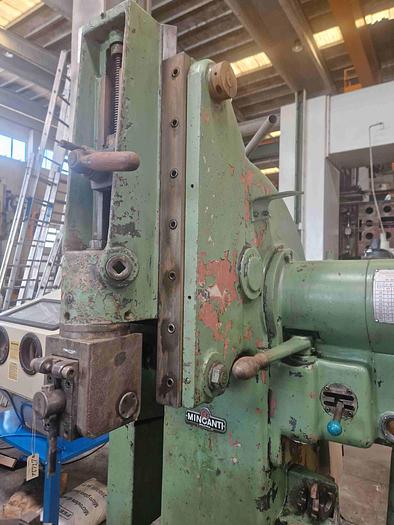

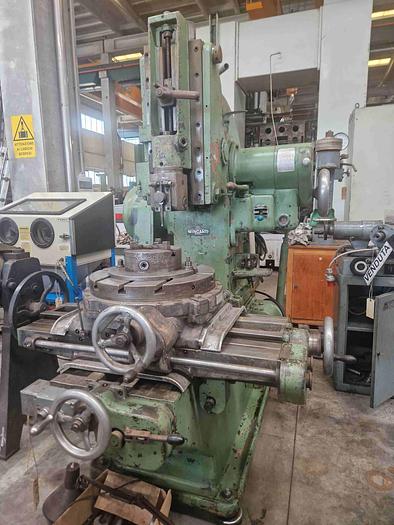

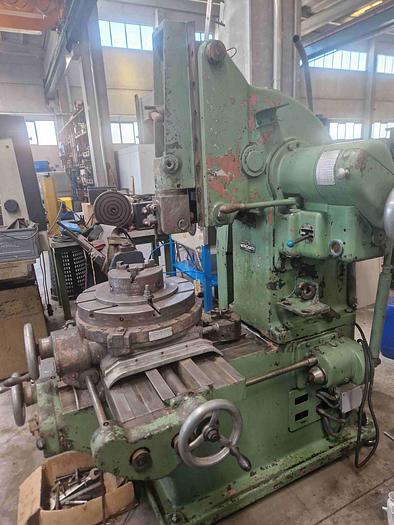

MINGANTI SM 160 MECHANICAL SLOTTING MACHINE
Technical specifications
| Manufacturer | MINGANTI |
| Model | SM 160 |
| Tool stroke | 160 mm. |
| Max. distance from table to the tool | 380 mm. |
| Gap | 460 mm. |
| Table Ø | 500 mm. |
| Transversal table travel | 480 mm. |
| Longitudinal table travel | 630 mm. |
| Strokes per minute | 43 - 150 |
| Total weight | 2.400 Kg. |
Features and Accessories
Complete with:
- n. 1 self centering chuck Ø 230 mm.
- tooling
