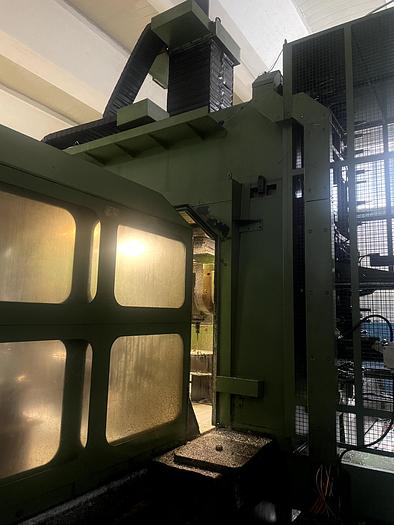

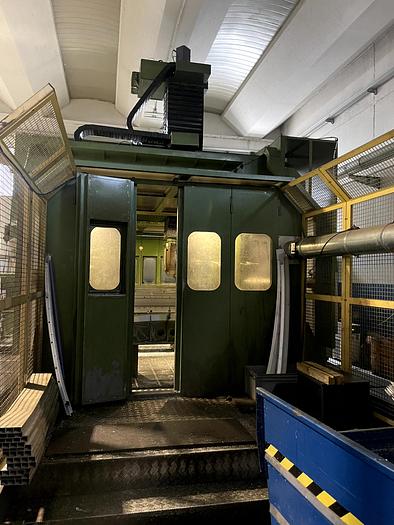

INNSE CERUTI 25 CNC GANTRY TYPE MILLING MACHINE
No longer available
Technical specifications
Manufacturer | INNSE |
Model | CERUTI 25 CNC |
Year | 2002 |
Table | 4.000 x 2.500 mm. |
Passage between columns | 3.200 mm. |
Max. working height | 1.500 mm. |
Portal travel | 4.000 mm. |
Transversal head travel | 2.500 mm. |
Vertical head travel | 1.250 mm. |
Spindle power | 35 Kw. |
Spindle speeds | 10.000 Rpm. |
Spindle taper | HSK-A 80 |

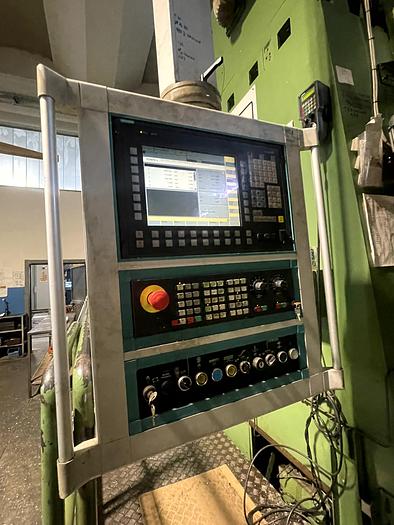

Cnc | CNC Siemens 840 D |
Features and Accessories
Complete with:
- 60 atc
