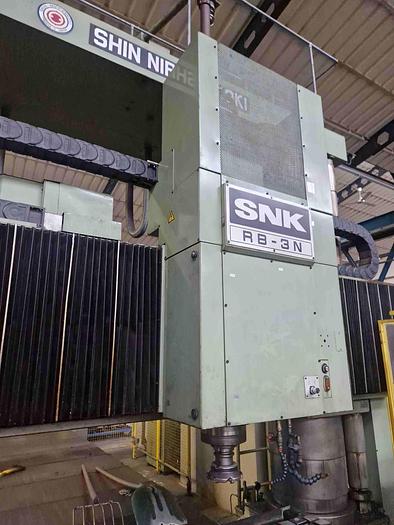

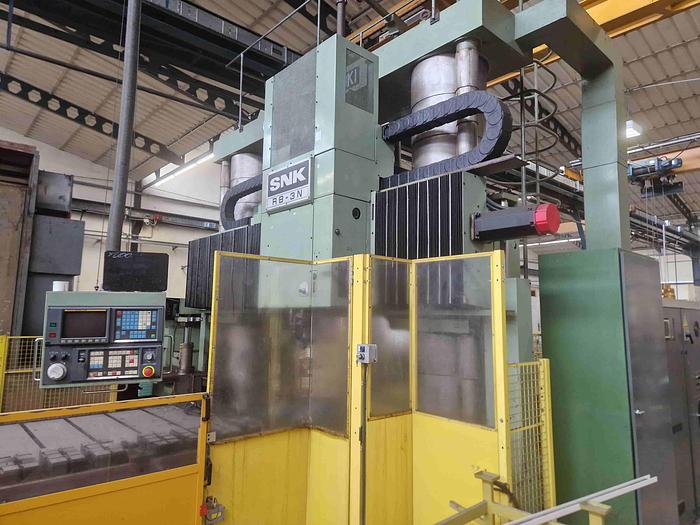

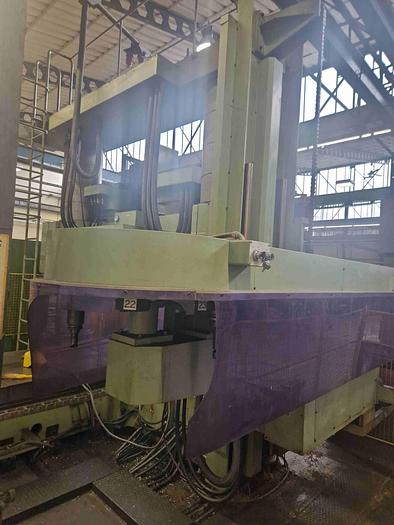

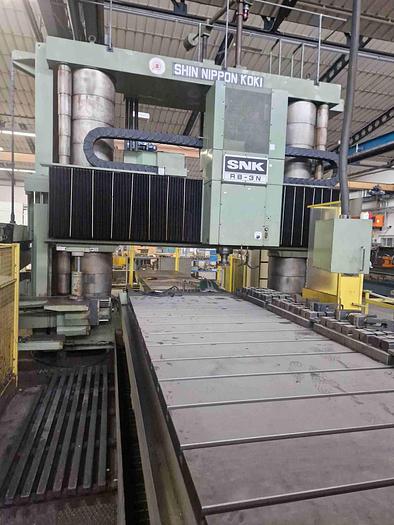

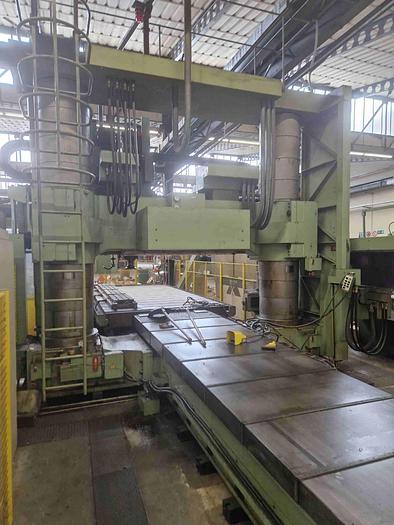

SNK RB 3 N CNC PORTAL MILLING MACHINE
Technical specifications
| Manufacturer | SNK |
| Model | RB 3 N CNC |
| Year | 1990 |
| Stock Number | RB3N |
| Table | 4.000 X 2.000 mm. |
| Passage between columns | 2.400 mm. |
| Max. working height | 1.500 mm. |
| Table travel | 4.250 mm. |
| Transversal head travel | 2.000 mm. |
| Vertical head travel | 400 mm. |
| Crossrail travel | 1.100 mm. |
| Spindle power | 22 Kw. |
| Spindle speeds | 30 ÷ 3.500 Rpm. |
| Spindle taper | ISO 50 |
| Max. weight on table | 10 Tons. |

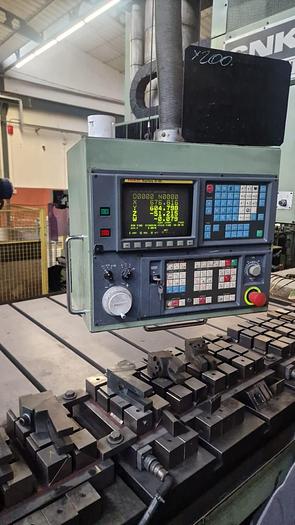

| Cnc | CNC FANUC O-M |
| Total weight | 40 Tons. |
Features and Accessories
Complete with:
- 24 seats atc

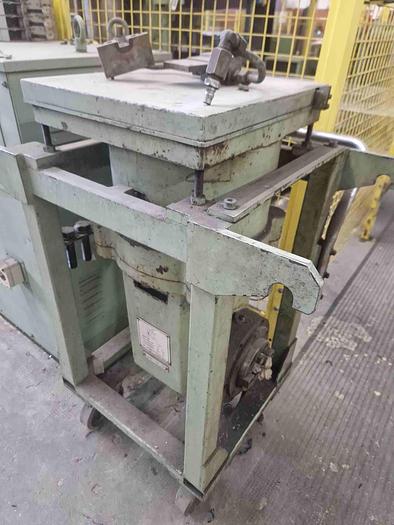

- 90° angle milling head
- double chipconveyor
- tool-holders and tooling
