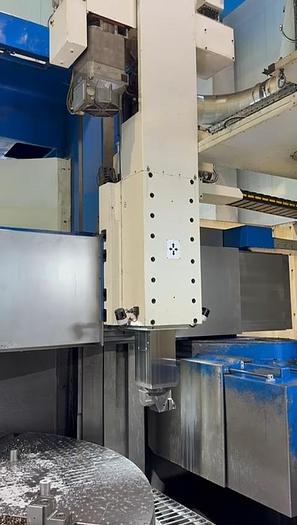

SIRMU VSN 300 C CNC VERTICAL BORER
Technical specifications
| Manufacturer | SIRMU |
| Model | VSN 300 C CNC |
| Year | 2003 |
| Stock Number | VSN-300-C |
| Table Ø | 3.000 mm. |
| Max. working Ø | 3.300 mm. |
| Spindle power | 100 Kw. |
| Max. working height | 1.835 mm. |
| Max. weight on table | 27 Tons. |
| Table speeds | 1,3 ÷ 135 Rpm. |
| RAM type vertical tool travel | 1.000 mm. |
| RAM size | 230 x 230 mm. |
| Milling motor power | 30 Kw. |
| Milling speeds | 1 ÷ 3.000 Rpm. |
| Cnc | CNC SIEMENS 840 D |
| Total weight | 65 Tons. |
Features and Accessories
Complete with:
- hydraulic self centering chuck Ø 3.000 mm.
- "c" axis
- 16 seats atc
- vertical milling head
- manual tilting milling head
- grinding head
- tool and tool-holders
- chipconveyor
