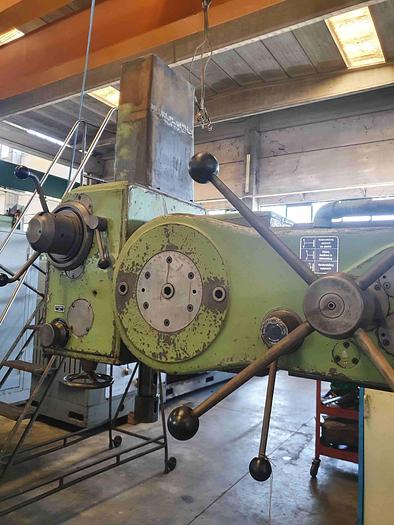

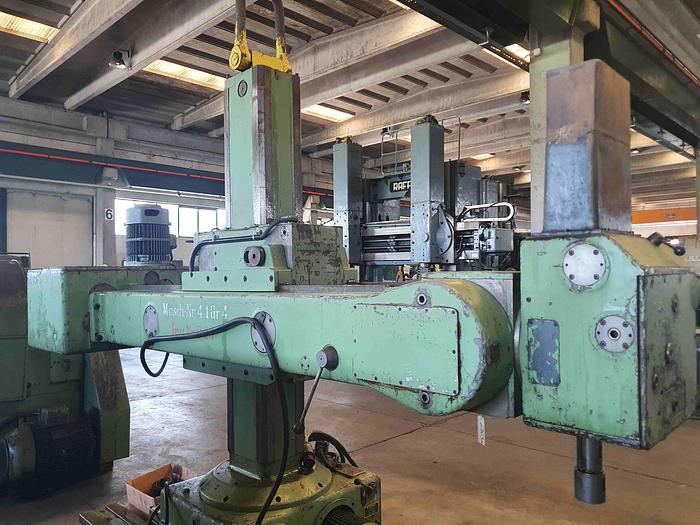

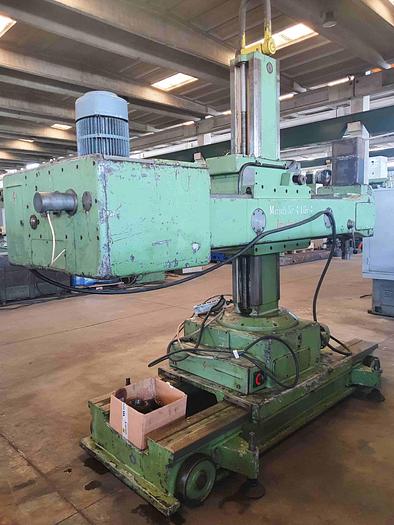

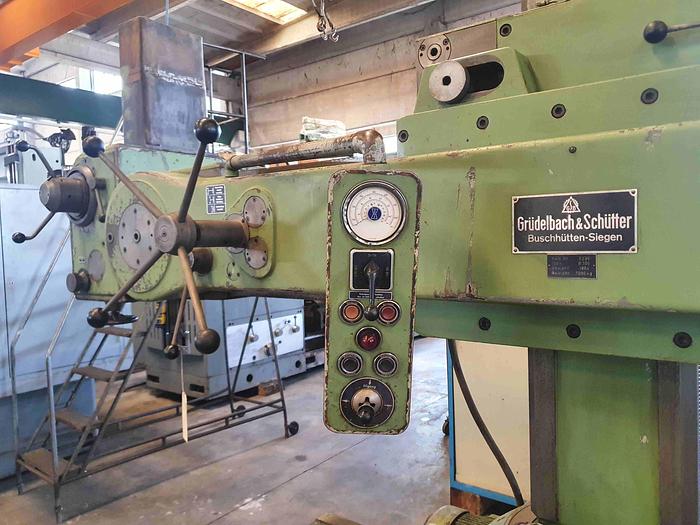

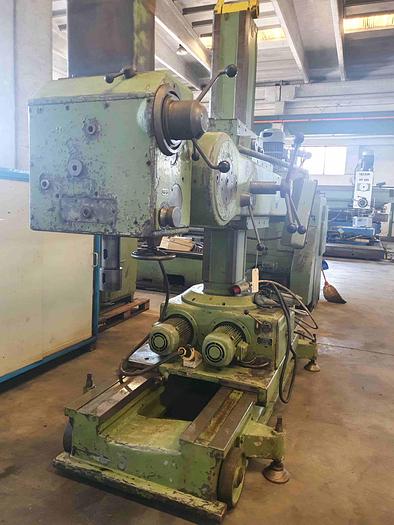

GRUDELBACH B 100 TRANSPORTABLE RADIAL DRILL
No longer available
Technical specifications
| Manufacturer | GRUDELBACH |
| Model | B 100 |
| Drilling capacity | 60 mm. |
| Spindle power | 5,5 Kw. |
| Spindle speeds | 4,75 - 890 Rpm. |
| Spindle Ø | 80 mm. |
| Spindle travel | 350 mm. |
| Column Ø | 320 x 260 mm. |
| Total weight | 7.000 Kg. |
Features and Accessories
Column travel 1.500 mm.
Ram transversal travel 1.100 mm.
Ram vertical travel 900 mm.
Max. distance spindle to ground (head in vertical position) 1.500 mm.
Max. distance spindle to ground (head in horizontal position) 1.950 mm.
Complete with:
- double head rotation 360° and +/- 90°
